Technical Projects

Autonomy, embedded systems, perception, and hardware-first builds with the same research-to-prototype workflow used across my work experience.

cd ~/projects/list

On this page

cd ~/projects/3d-object-detection

3D Object Detection on the Waymo Open Dataset

Waymo Open Dataset Perception · 5 cameras + 5 LiDARs · 20s segments @ 10 Hz
LiDAR returns projected into the front camera and colored by depth, with labeled objects carrying persistent track IDs
front camera alongside the fused 360° LiDAR bird’s‑eye view — same frame, both sensor domains
earth‑locked global map — returns accumulated in world frame via ego pose, with the vehicle trajectory

LiDAR, multi‑view camera, and fusion pipelines predicting 7‑DoF oriented boxes

Role: Solo developerStatus: In progress
PyTorchWaymo Open DatasetLiDARBEVSensor FusionOpen3D

Overview

A deep learning perception stack that takes raw autonomous‑vehicle sensor data and predicts 3D oriented bounding boxes(x, y, z, l, w, h, heading) plus an object class — for vehicles, pedestrians, and cyclists. I’m building it on the Waymo Open Dataset, which provides synchronized 5‑camera imagery and 360° LiDAR with human‑verified 3D labels.

Concept

3D detection is the perception foundation that tracking, prediction, and planning all inherit their errors from. Each sensor family fails differently — LiDAR gives metric depth but sparse texture, cameras give dense semantics with no direct depth — so I’m building a pipeline per modality behind a shared data loader to compare them on the same data.

Architectures Explored

  • LiDAR‑only: PointPillars as a fast baseline (2D pseudo‑image projection), with SECOND and CenterPoint for sparse 3D convolutions and anchor‑free center detection.
  • Multi‑view camera: BEVFormer / PETR‑style transformers that lift the 5 surround cameras into a unified bird’s‑eye‑view feature map via cross‑attention.
  • Sensor fusion: a BEVFusion‑style network combining camera texture with LiDAR depth in shared BEV space.

Specifications

Dataset: Waymo Open (Perception)
Sensors: 5 cameras + 5 LiDARs
Output: 7‑DoF box + class
Classes: Vehicle, Pedestrian, Cyclist
Framework: PyTorch
Viz: Open3D + OpenCV

Current Progress

The data pipeline and visualizer are working end to end: segments decode from TFRecords, LiDAR returns project into all five camera views, and boxes render in both ego‑centric and earth‑locked BEV using ego pose. The clips here are ground‑truth labels rendered through that pipeline — the reference I’ll evaluate model predictions against.

Results

Actively working on this pipeline and learning from it.

all five surround cameras, time‑synchronized — 3D labels projected into each view for full 360° coverage
full 199‑frame segment in ego‑centric BEV with range rings
cd ~/projects/autonomous-drone

Autonomous Drone Navigation System

roll axis PID tuning
First outdoor flight test
PID timing test

Custom flight‑controller hardware + CV stack for autonomous flight

Role: Systems & firmwareStatus: In flight‑tuning
ESP32FreeRTOSRaspberry PiSLAMPID ControlKiCad

Overview

This past summer, I was extremely interested in avionics, and embedded software development. What better way to learn than building a flight controller from scratch! I developed a fully custom flight controller PCB, integrating IMU, GPS, and cameras. It allows communication between a Raspberry PI 0W for vision information. It combines real‑time embedded control with a companion computer vision pipeline to enable reliable autonomous flight on low‑cost hardware. I also developed the quadrotor chassis from scratch in Fusion 360, trying to minimize for 3D-printing weight and optimizing for center of mass distribution.

Concept

Split compute: the ESP32 handles deterministic loops (sensing, control, motor PWM) under FreeRTOS, while a Raspberry Pi runs SLAM and obstacle avoidance. The design emphasises easy tuning and log‑driven iteration.

Design Process

  • Developed quadrotor chassis in Fusion 360, optimizing for center of gravity, and minimizing 3D-printing weight.
  • Designed a custom controller PCB (power management, IMU, GPS, barometer, motor drivers) in KiCad.
  • Implemented multi‑loop PID for attitude/altitude; prioritized IMU pipeline with task affinities on FreeRTOS.
  • Integrated stereo depth & detection on the Pi; fused estimates for navigation.
  • Bench‑tested PWM transients and added flyback/EMI mitigation; iterated with black‑box logs.

Specifications

MCU: ESP32 @ FreeRTOS
Companion: Raspberry Pi
Sensors: IMU (MPU 6500), GPS(GY-NEO6MV2), Barometer(BPM 280)
Comms: I2C/SPI/UART, PWM ESCs
Vision: Stereo depth + detection
Planning: A*/RRT (roadmap)

Results

  • Hardware assembled and validated; closed‑loop stability achieved on bench.
  • Vision stack integrated; flight envelope characterization in progress.
  • Currently in process of self-navigation implementation using A* and Pathweaver.

V2 Flight Controller

Beginning work on a second revision that follows the OpenFC architecture for improved modularity and tuning.

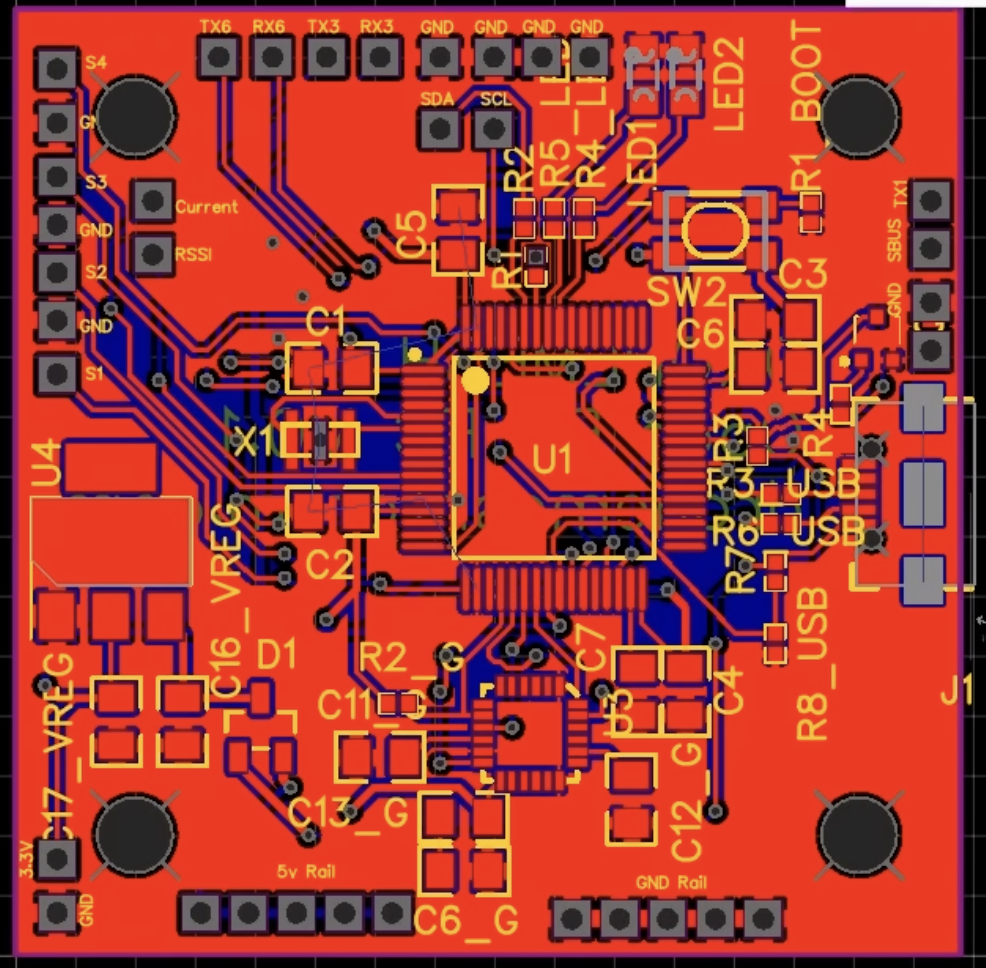

Second version of flight controller based on OpenFC
beginning of second version of flight controller, based on OpenFC architecture

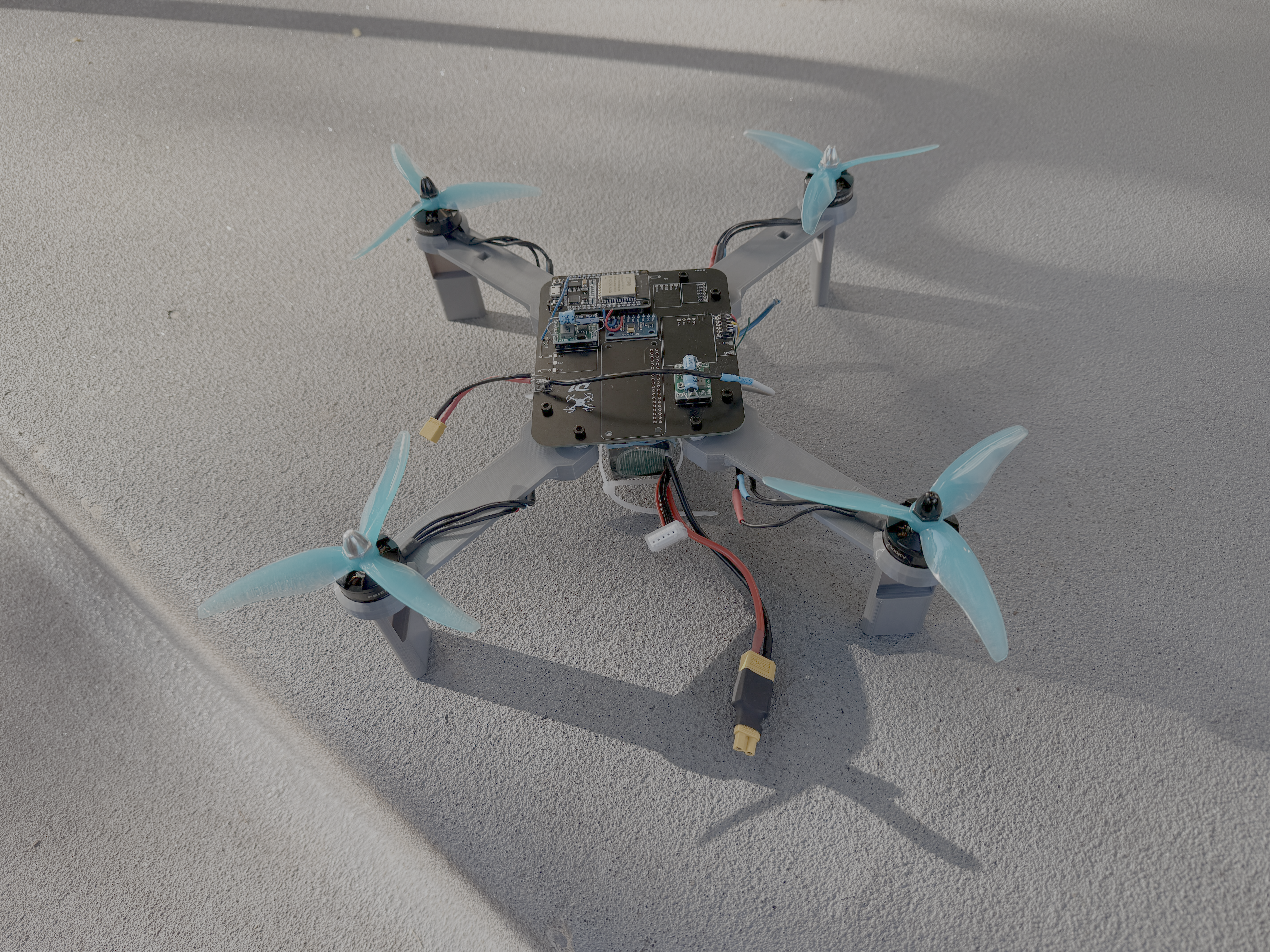

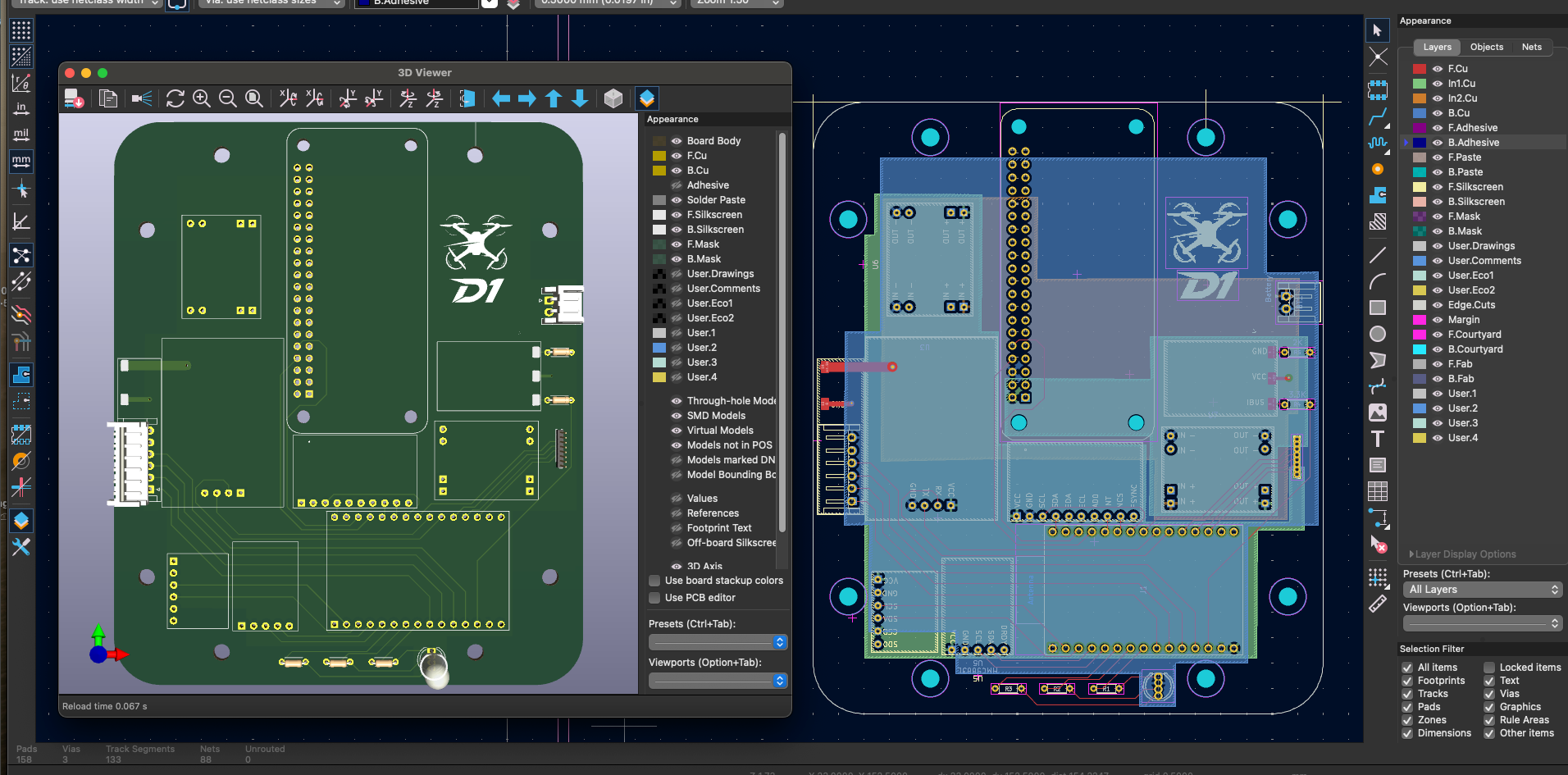

Custom flight controller PCB Final custom drone build
cd ~/projects/stereo-vision

Computer Vision: Real‑Time Stereo Depth Estimation

Depth pipeline using StereoSGBM/SBM with calibration & rectification

Role: Solo developerTimeline: May–August 2025
OpenCVPythonCalibration3D ReconstructionReal‑time

Overview

A real‑time stereo depth pipeline built for robotics perception. Produces stable disparity maps on commodity cameras with a full calibration→rectification→disparity→post‑filtering chain.

Concept

Engineer a reproducible CV stack that trades a bit of peak accuracy for consistent, low‑latency results appropriate for embedded navigation.

Design Process

  • Implemented intrinsic/extrinsic calibration and lens distortion correction.
  • Performed epipolar rectification and StereoSGBM disparity with tunable parameters.
  • Benchmarked against Middlebury; prepared Kalman temporal smoothing hooks.

Specifications

Language: Python + OpenCV
Modes: SGBM / BM
Artifacts: Rectified pairs, disparity maps
Outputs: Depth estimates & point clouds

Results

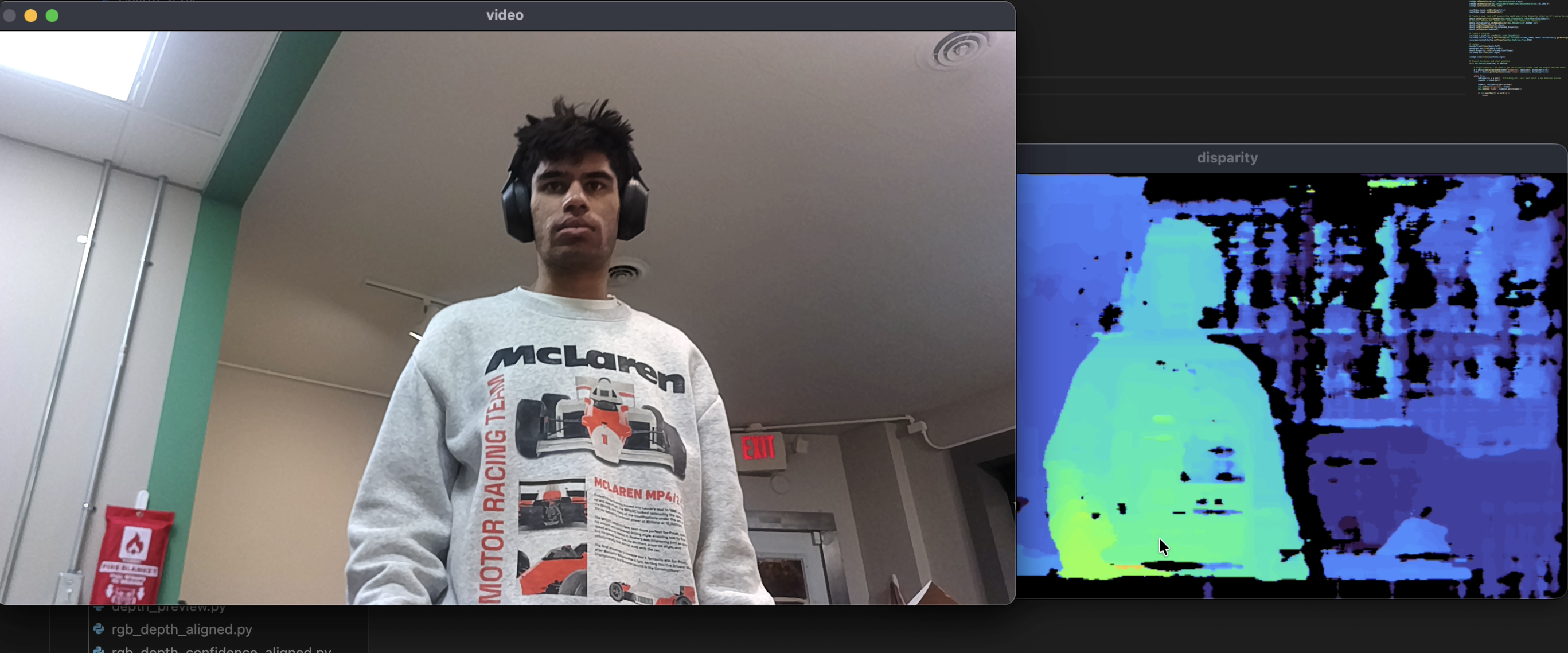

  • Consistent depth maps validated on public datasets and live feeds.
  • Ready for integration into on‑robot navigation nodes.
  • Rough proof of concept, utilizing cheap amazon webcams fused together in a 3D print.

Pitfalls & Challenges

  • Undocumented cameras: The Amazon listing lacked sensor/lens details, so I disassembled the webcams to identify the sensor and track down the manufacturer datasheet. I used those specs (sensor size, focal characteristics, etc.) to sanity‑check and improve intrinsic calibration.

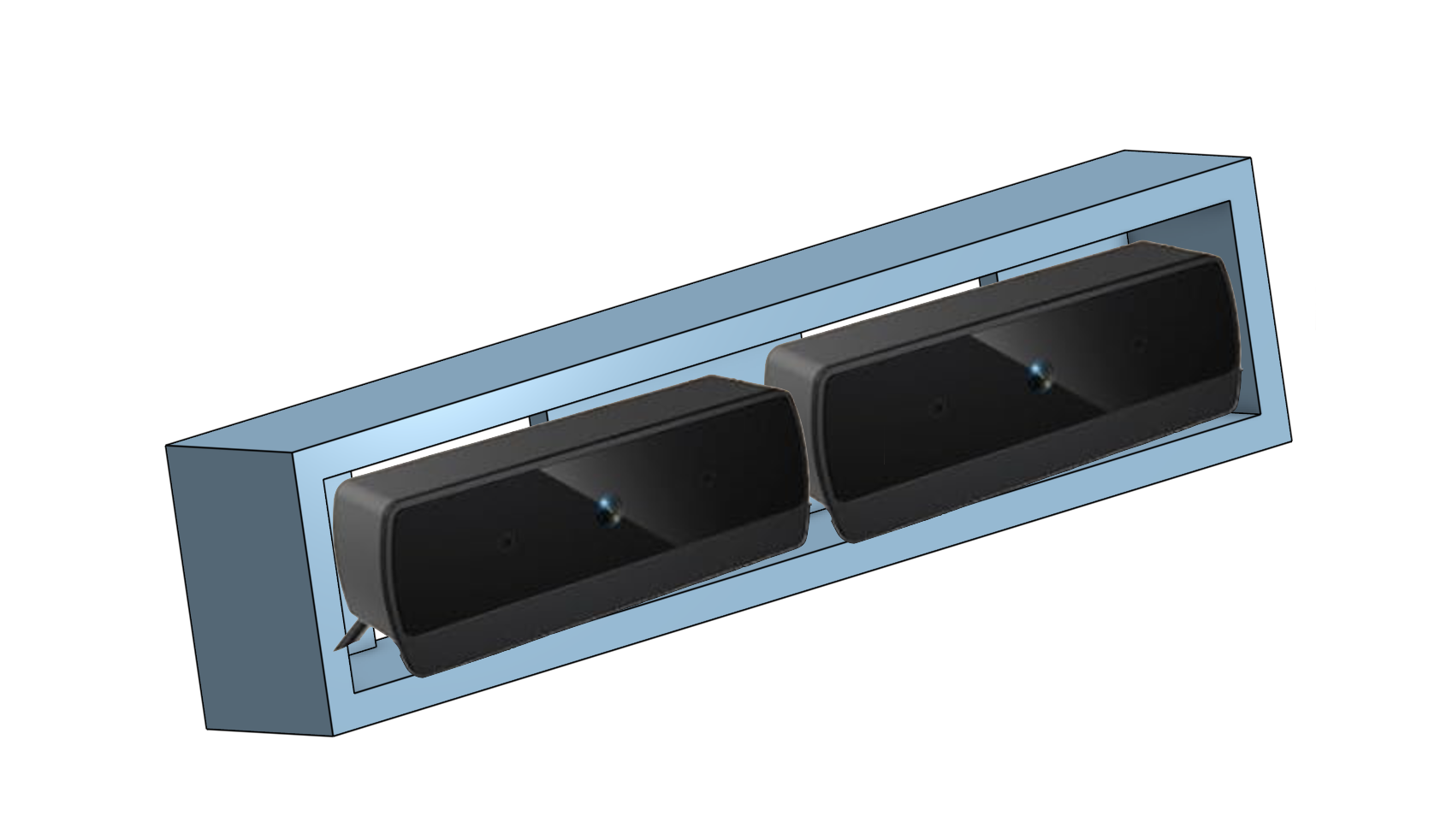

  • Mechanical misalignment from the mount: A 3D‑printed stereo rig was difficult to keep consistent due to printer tolerances and warping. I iterated by adding small shims (tape) to adjust pitch/yaw in ~0.5–1° steps until epipolar lines were close.
  • Software rectification trade‑offs: Because the cameras weren’t perfectly aligned, I relied heavily on software rectification to enforce horizontal alignment. The large black borders in the rectified frames are the cost of cropping/warping to keep epipolar geometry correct and disparity stable.
  • Baseline & FOV constraints: With cheap webcams, small baseline changes and lens variation noticeably impacted depth noise. I had to tune baseline spacing and SGBM parameters to balance depth range vs. flicker and speckle artifacts.

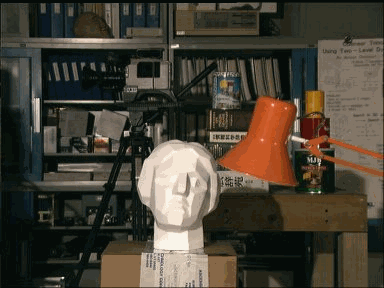

Tsukuba stereo input pair Ground truth disparity Left camera feed Right camera feed
cd ~/projects/parking-assistant

Garage Parking Assistant

Ultrasonic‑guided parking with real‑time distance feedback

Role: Embedded developer
ArduinoUltrasonic SensorsEmbedded

Overview

A garage aid that measures bumper‑to‑wall distance via ultrasonic sensing and provides intuitive feedback cues for consistent, safe parking.

Concept

Low‑cost, reliable sensing with debounced reads and basic smoothing for stable display—no network or app required.

Design Process

  • Implemented sensor polling loop with outlier rejection and moving‑average smoothing.
  • Designed simple visual feedback logic and thresholds for driver cues.
  • Iterated mounting geometry to reduce spurious reflections.

Specifications

MCU: Arduino
Sensor: Ultrasonic rangefinder
Loop: Debounced + smoothed readings
UI: LED/indicator thresholds

Results

  • More consistent parking stops; reduces bumper contact in tight spaces.
